Step 1: NC Parcel Data Sanity Checks

Load libraries

In [1]:

library(sf)

Linking to GEOS 3.12.0, GDAL 3.11.0, PROJ 9.2.1; sf_use_s2() is TRUE

library(dplyr)

Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

library(ggplot2)
library(DBI)
library(RSQLite)
library(DT)

Point to directories and data

In [2]:

# Output directory (external to repo; not tracked by git)
out_dir <- "/proj/mhinolab/users/rbless/data/Obstacles_Output"
dir.create(out_dir, recursive = TRUE, showWarnings = FALSE)

out_gpkg <- file.path(out_dir, "parcels_study_area.gpkg")
out_csv  <- file.path(out_dir, "parcels_study_area.csv")

study_area_path <- "/proj/mhinolab/projects/obstacles/NC_huc6_data_union_sf/NC_huc6_data_union_sf.shp"
gpkg_path <- "/proj/mhinolab/users/rbless/data/parcels/NC_Parcels_all.gpkg"
parcels_layer <- "nc_parcels_poly" # update if st_layers() indicates otherwise



cols_keep_attr <- c(
  "cntyfips", "parno", "altparno", "nparno",
  "siteadd", "sunit", "scity", "szip",
  "mailadd", "ownname", "ownfrst", "ownlast",
  "parval", "parusedesc",
  "improvval", "landval", "structyear", "struct", "multistruc", "structno"
)

dup_path <- file.path(out_dir, "dup_counts_studyarea_cntyfips_parno.rds")

out_layer <- "parcels_study_area"

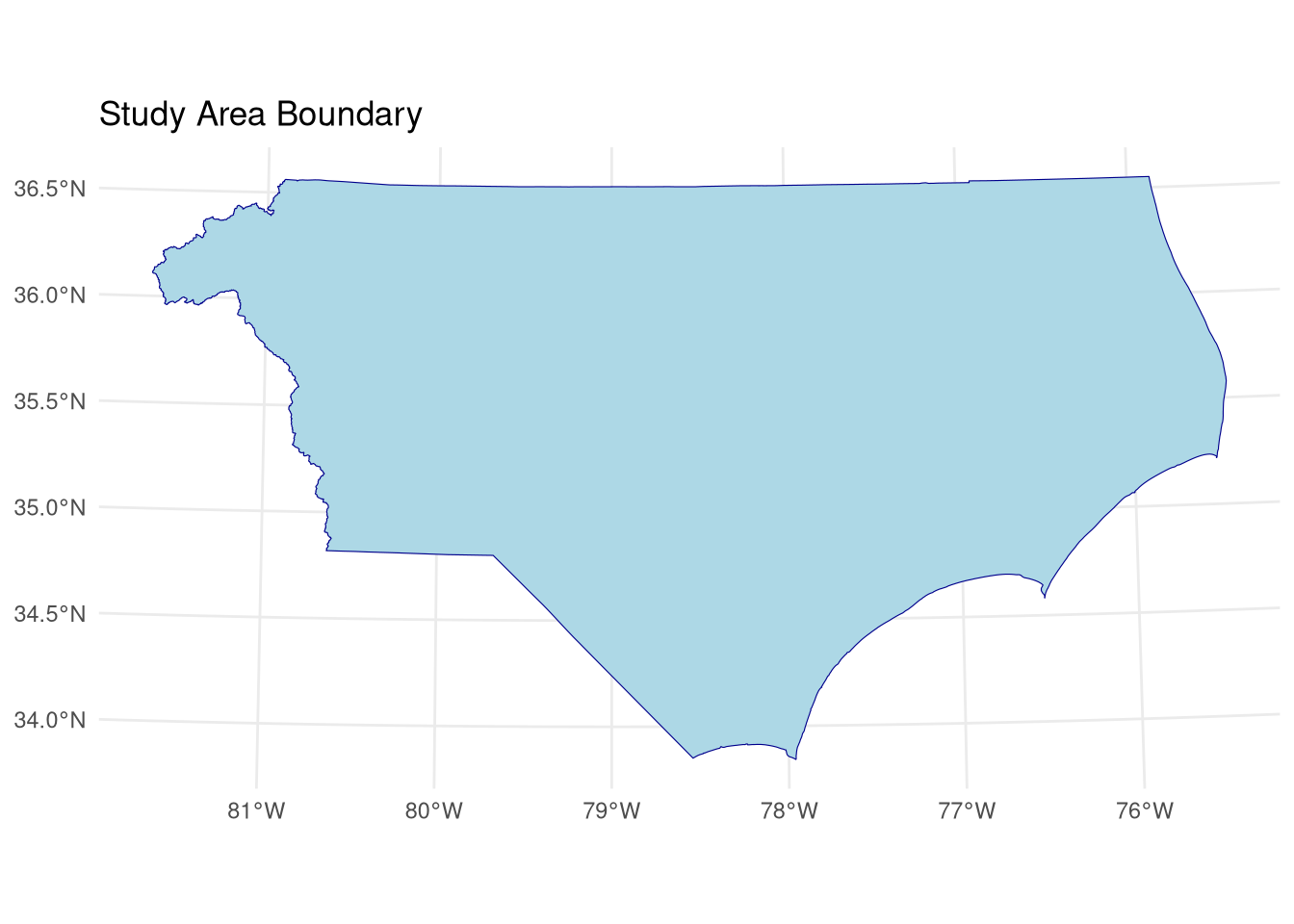

Study Area

In [3]:

study_area <- st_read(study_area_path, quiet = TRUE)

study_union <- study_area %>%
  st_make_valid() %>%
  st_geometry() %>%
  st_union() %>%
  st_sfc(crs = st_crs(study_area)) %>%
  st_as_sf() %>%
  st_transform(2264)

study_bbox <- st_bbox(study_union)

ggplot() +
geom_sf(data = study_union, fill = "lightblue", color = "darkblue") +
theme_minimal() +
labs(title = "Study Area Boundary")

Identify parcel CRS

EPSG = 2264 (NAD83 / North Carolina (ftUS))

In [4]:

# get_layer_crs <- function(gpkg_path, layer) {
#   sql <- sprintf('SELECT * FROM "%s" LIMIT 0', layer)
#   x0 <- sf::st_read(gpkg_path, query = sql, quiet = TRUE)
#   sf::st_crs(x0)
# }
#
# parcel_crs <- get_layer_crs(gpkg_path, parcels_layer)
# parcel_crs$epsg   # should be 2264

In [5]:

x0 <- st_read(gpkg_path,
              query = sprintf('SELECT * FROM "%s" LIMIT 0', parcels_layer),
              quiet = TRUE)
geom_col <- attr(x0, "sf_column")

cols_keep <- c(geom_col, cols_keep_attr)

Parcels Attributes to Keep

Variable	Description
cntyfips	County FIPS code (3-digit)
parno	Local parcel number
altparno	Alternate/local parcel number
nparno	National parcel number (state-county FIPS prefix + local parcel number)
siteadd	Full site address
sunit	Site address unit/suite/apartment number
scity	Site address city
szip	Site address zip code
mailadd	Full mailing address
ownname	Full owner name (primary surface owner)
ownfrst	Owner first name
ownlast	Owner last name
parval	Total parcel value (improvval + landval), in dollars
parusedesc	Tax parcel use description (e.g., residential, commercial, agriculture)
improvval	Value of improvements on the parcel, in dollars
landval	Value of land on the parcel, in dollars
structyear	Year built of the primary building
struct	Structure indicator: Y = yes, N = no, U = unknown
multistruc	Multiple structures indicator: Y = yes, N = no, U = unknown
structno	Number of structures on the parcel

In [6]:

# Open connection just for this query
con <- dbConnect(RSQLite::SQLite(), gpkg_path)

sql <- sprintf('
  SELECT DISTINCT CAST(cntyfips AS TEXT) AS cntyfips
  FROM "%s"
  WHERE cntyfips IS NOT NULL
  ORDER BY cntyfips
', parcels_layer)

cntys <- dbGetQuery(con, sql)$cntyfips

dbDisconnect(con)

cntys <- cntys[!is.na(cntys) & nzchar(cntys)]

In [7]:

#if (file.exists(out_gpkg)) file.remove(out_gpkg)

if (!file.exists(out_gpkg)) {

  con <- DBI::dbConnect(RSQLite::SQLite(), gpkg_path)
  on.exit(DBI::dbDisconnect(con), add = TRUE)


  cols_sql <- paste(sprintf('"%s"', cols_keep), collapse = ", ")
  wrote_any <- FALSE
  t0 <- Sys.time()

  for (i in seq_along(cntys)) {
    c <- cntys[[i]]
    if (i %% 5 == 0) {
      message(sprintf("[%d/%d] county=%s elapsed=%.1f min",
                      i, length(cntys), c,
                      as.numeric(difftime(Sys.time(), t0, units="mins"))))
    }

    c_q <- DBI::dbQuoteString(con, c)

    sql <- sprintf(
      'SELECT %s FROM "%s" WHERE CAST(cntyfips AS TEXT) = %s',
      cols_sql, parcels_layer, c_q
    )

    x <- sf::st_read(gpkg_path, query = sql, quiet = TRUE)
    if (nrow(x) == 0) next

    # cheap spatial restrictions
    x <- sf::st_crop(x, study_bbox)
    if (nrow(x) == 0) next

    x_in <- sf::st_filter(x, study_union, .predicate = sf::st_intersects)
    if (nrow(x_in) == 0) next

    sf::st_write(
      x_in,
      out_gpkg,
      layer = out_layer,
      append = wrote_any,
      quiet = TRUE
    )

    wrote_any <- TRUE
    rm(x, x_in); gc()
  }

  if (!wrote_any) stop("No parcels were written—check CRS/study area.")
  message("Wrote: ", out_gpkg)

} else {
  message("Already exists: ", out_gpkg)
}

Already exists: /proj/mhinolab/users/rbless/data/Obstacles_Output/parcels_study_area.gpkg

message("Clipped gpkg size: ", round(file.size(out_gpkg)/1024^2, 1), " MB")

Clipped gpkg size: 2982.4 MB

In [8]:

# Add parcel_index as a stable unique row identifier (mirrors Python Step 1)
# Only runs if parcel_index is not already present in the file
existing_cols <- sf::st_layers(out_gpkg)$fields[[1]]

if (!"parcel_index" %in% existing_cols) {
  message("Adding parcel_index to ", out_gpkg)

  nc1_tmp <- sf::st_read(out_gpkg, layer = out_layer, quiet = TRUE) |>
    dplyr::mutate(parcel_index = as.integer(dplyr::row_number()))

  tmp_gpkg <- paste0(out_gpkg, ".tmp.gpkg")
  sf::st_write(nc1_tmp, tmp_gpkg, layer = out_layer, quiet = TRUE)
  file.rename(tmp_gpkg, out_gpkg)

  rm(nc1_tmp); gc()
  message("parcel_index added. New size: ", round(file.size(out_gpkg)/1024^2, 1), " MB")
} else {
  message("parcel_index already present — skipping.")
}

Adding parcel_index to /proj/mhinolab/users/rbless/data/Obstacles_Output/parcels_study_area.gpkg

parcel_index added. New size: 2982.4 MB

In [9]:

if (!file.exists(dup_path)) {

  if (!file.exists(out_gpkg)) {
    stop("Clipped parcels gpkg not found yet: ", out_gpkg)
  }

  # Read ONLY the fields needed from the clipped layer
  sql <- sprintf('SELECT cntyfips, parno FROM "%s"', out_layer)

  x <- sf::st_read(out_gpkg, query = sql, quiet = TRUE) |>
    sf::st_drop_geometry()

  dup_counts <- x |>
    dplyr::count(cntyfips, parno, name = "n") |>
    dplyr::filter(n > 1) |>
    dplyr::arrange(dplyr::desc(n), cntyfips, parno)

  saveRDS(dup_counts, dup_path)
  message("Saved: ", dup_path)

} else {
  dup_counts <- readRDS(dup_path)
  message("Loaded existing: ", dup_path)
}

Loaded existing: /proj/mhinolab/users/rbless/data/Obstacles_Output/dup_counts_studyarea_cntyfips_parno.rds

Duplicate Parcels in Study Area

In [10]:

dup_counts <- readRDS(dup_path) |>
  dplyr::filter(!is.na(parno), nzchar(parno))  # drop null/blank parno

dup_keys <- dup_counts |>
  dplyr::distinct(cntyfips, parno)

sql <- sprintf('SELECT cntyfips, parno, siteadd, scity, szip FROM "%s"', out_layer)

parcel_addrs <- sf::st_read(out_gpkg, query = sql, quiet = TRUE) |>
  sf::st_drop_geometry() |>
  dplyr::semi_join(dup_keys, by = c("cntyfips", "parno")) |>
  dplyr::slice_head(n = 1, by = c(cntyfips, parno))  # one address row per parcel

dupes_full <- dup_counts |>
  dplyr::left_join(parcel_addrs, by = c("cntyfips", "parno")) |>
  dplyr::mutate(
    full_addr = paste(
      tidyr::replace_na(siteadd, ""),
      tidyr::replace_na(scity, ""),
      "NC",
      tidyr::replace_na(szip, "")
    ),
    maps_url = paste0(
      "https://www.google.com/maps/search/?api=1&query=",
      utils::URLencode(full_addr, reserved = TRUE)
    ),
    maps_link = paste0('<a href="', maps_url, '" target="_blank">Map</a>')
  ) |>
  dplyr::select(cntyfips, parno, n, siteadd, scity, szip, maps_link)

save(dupes_full, file = file.path(out_dir, "duplicate_parcels_study_area.rdata"))

In [11]:

load(file.path(out_dir, "duplicate_parcels_study_area.rdata"))

datatable(
  dupes_full,
  escape = FALSE,
  filter = "top",
  options = list(pageLength = 10, scrollX = TRUE),
  caption = "Duplicate parcels (by cntyfips + parno) in study area"
)

Warning in instance$preRenderHook(instance): It seems your data is too big for
client-side DataTables. You may consider server-side processing:
https://rstudio.github.io/DT/server.html

In [12]:

n_parcels <- st_layers(out_gpkg)$features[1]
n_dupes   <- nrow(dupes_full)

The study area contains 4,273,305 total parcels, of which 22,379 contain duplicates.

In [13]:

dupes_full |>
  dplyr::count(n, name = "num_parcels") |>
  dplyr::arrange(dplyr::desc(n)) |>
  datatable(
    colnames = c("Duplicate Count (n)", "Number of Parcels"),
    caption = "Distribution of duplicate counts",
    options = list(pageLength = 10)
  )

In [14]:

ggplot(dupes_full, aes(x = n)) +
  geom_histogram(binwidth = 1, fill = "steelblue", color = "white") +
  scale_x_continuous(breaks = seq(2, max(dupes_full$n), by = 1)) +
  labs(
    title = "Distribution of Duplicate Counts",
    x = "Number of Duplicates (n)",
    y = "Number of Parcels"
  ) +
  theme_minimal()
