Step 2: CoreLogic Trim + QA/QC

In [1]:

library(readr)
library(dplyr)

Attaching package: 'dplyr'

The following objects are masked from 'package:stats':

    filter, lag

The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union

library(sf)

Linking to GEOS 3.12.0, GDAL 3.11.0, PROJ 9.2.1; sf_use_s2() is TRUE

library(stringr)
library(tidyr)
library(ggplot2)
library(gt)

corelogic_csv <- "/proj/mhinolab/projects/obstacles2/CRC_May_2025/Raw Data Inputs/Core Logic NC/statedf_NC_2024-11-05.csv"
parcels_gpkg <- "/proj/mhinolab/users/rbless/data/Obstacles_Output/parcels_study_area.gpkg"
output_csv    <- "/proj/mhinolab/users/rbless/data/Obstacles_Output/cl.csv"

stopifnot(file.exists(corelogic_csv))
stopifnot(file.exists(parcels_gpkg))

cat("Raw CoreLogic CSV:", corelogic_csv, "\n")

Raw CoreLogic CSV: /proj/mhinolab/projects/obstacles2/CRC_May_2025/Raw Data Inputs/Core Logic NC/statedf_NC_2024-11-05.csv

cat("Parcels GPKG :", parcels_gpkg, "\n")

Parcels GPKG : /proj/mhinolab/users/rbless/data/Obstacles_Output/parcels_study_area.gpkg

cat("Cleaned Corelogic CSV  :", output_csv, "\n")

Cleaned Corelogic CSV  : /proj/mhinolab/users/rbless/data/Obstacles_Output/cl.csv

In [2]:

# Read all columns as character to preserve leading zeros in FIPS codes and other IDs
cl <- readr::read_csv(
  corelogic_csv,
  col_types = cols(.default = col_character())
)

# Load study area parcels from GeoPackage
parcels <- sf::st_read(parcels_gpkg, quiet = TRUE)

# Confirm required join keys exist in both datasets before proceeding
stopifnot("cntyfips" %in% names(parcels))
stopifnot("FIPS CODE" %in% names(cl))

cat("CoreLogic rows:", nrow(cl), " cols:", ncol(cl), "\n")
cat("Parcels rows  :", nrow(parcels), " cols:", ncol(parcels), "\n")

In [3]:

# Build the county FIPS list from parcels, prefixed with "37" (NC state code)
cntyfips_list <- parcels |>
  sf::st_drop_geometry() |>
  dplyr::distinct(cntyfips) |>
  dplyr::mutate(fips_full = paste0("37", cntyfips)) |>
  dplyr::pull(fips_full)

# Trim CoreLogic to study area counties and drop duplicates
cl_trim <- cl |>
  dplyr::filter(`FIPS CODE` %in% cntyfips_list) |>
  dplyr::distinct() |>
  dplyr::mutate(cl_index = dplyr::row_number())

# Select columns of interest
desired_columns <- c(
  "CLIP", "FIPS CODE", "APN (PARCEL NUMBER UNFORMATTED)", "APN SEQUENCE NUMBER",
  "ORIGINAL APN", "ONLINE FORMATTED PARCEL ID", "ALTERNATE PARCEL ID",
  "SITUS HOUSE NUMBER", "SITUS STREET NAME", "SITUS CITY", "SITUS ZIP CODE",
  "MAILING HOUSE NUMBER", "MAILING STREET NAME", "MAILING CITY", "MAILING ZIP CODE",
  "PARCEL LEVEL LATITUDE", "PARCEL LEVEL LONGITUDE", "LAND USE CODE",
  "COUNTY USE DESCRIPTION", "STATE USE DESCRIPTION", "ZONING CODE DESCRIPTION",
  "PROPERTY INDICATOR CODE", "TOTAL VALUE CALCULATED", "LAND VALUE CALCULATED",
  "IMPROVEMENT VALUE CALCULATED", "ASSESSED TOTAL VALUE", "ASSESSED LAND VALUE",
  "ASSESSED IMPROVEMENT VALUE", "MARKET TOTAL VALUE", "MARKET LAND VALUE",
  "MARKET IMPROVEMENT VALUE", "ACRES", "YEAR BUILT", "EFFECTIVE YEAR BUILT",
  "OWNER 1 FULL NAME", "cl_index"
)

cl_trim <- cl_trim |>
  dplyr::select(dplyr::any_of(desired_columns))

# Save
readr::write_csv(cl_trim, output_csv)

In [4]:

cl_trim <- readr::read_csv("/proj/mhinolab/users/rbless/data/Obstacles_Output/cl.csv",
                           col_types = cols(.default = col_character()))

In [5]:

numeric_cols <- c(
  "TOTAL VALUE CALCULATED", "LAND VALUE CALCULATED", "IMPROVEMENT VALUE CALCULATED",
  "ASSESSED TOTAL VALUE", "ASSESSED LAND VALUE", "ASSESSED IMPROVEMENT VALUE",
  "MARKET TOTAL VALUE", "MARKET LAND VALUE", "MARKET IMPROVEMENT VALUE",
  "ACRES", "PARCEL LEVEL LATITUDE", "PARCEL LEVEL LONGITUDE"
)

integer_cols <- c(
  "APN SEQUENCE NUMBER", "PROPERTY INDICATOR CODE", "cl_index"
)

year_cols <- c("YEAR BUILT", "EFFECTIVE YEAR BUILT")

factor_cols <- c(
  "LAND USE CODE", "COUNTY USE DESCRIPTION", "STATE USE DESCRIPTION",
  "ZONING CODE DESCRIPTION", "PROPERTY INDICATOR CODE", "FIPS CODE"
)

cl_trim <- cl_trim |>
  mutate(
    across(all_of(numeric_cols), as.numeric),
    across(all_of(year_cols),    ~ suppressWarnings(as.integer(.))),
    across(all_of(integer_cols), ~ suppressWarnings(as.integer(.))),
    across(all_of(factor_cols),  as.factor)
  )

The trimmed CoreLogic dataset contains 4,631,388 property records across 78 counties in the study area.

In [6]:

cl_trim |>
  summarise(across(everything(), ~ mean(is.na(.)) * 100)) |>
  pivot_longer(everything(), names_to = "variable", values_to = "pct_missing") |>
  arrange(desc(pct_missing)) |>
  gt() |>
  tab_header(title = "Missingness by Variable") |>
  fmt_number(columns = pct_missing, decimals = 1) |>
  cols_label(
    variable    = "Variable",
    pct_missing = "% Missing"
  )

Missingness by Variable
Variable	% Missing
STATE USE DESCRIPTION	99.8
EFFECTIVE YEAR BUILT	59.0
ZONING CODE DESCRIPTION	54.1
YEAR BUILT	31.5
MARKET IMPROVEMENT VALUE	26.7
ASSESSED IMPROVEMENT VALUE	25.8
IMPROVEMENT VALUE CALCULATED	25.8
ALTERNATE PARCEL ID	18.8
SITUS HOUSE NUMBER	17.2
MAILING HOUSE NUMBER	9.7
MARKET LAND VALUE	5.9
ASSESSED LAND VALUE	4.4
LAND VALUE CALCULATED	4.3
SITUS ZIP CODE	3.9
SITUS CITY	3.8
SITUS STREET NAME	3.8
MARKET TOTAL VALUE	2.6
PARCEL LEVEL LATITUDE	2.4
PARCEL LEVEL LONGITUDE	2.4
COUNTY USE DESCRIPTION	1.8
ACRES	1.6
LAND USE CODE	1.5
PROPERTY INDICATOR CODE	1.5
ASSESSED TOTAL VALUE	1.1
TOTAL VALUE CALCULATED	1.1
MAILING STREET NAME	0.2
MAILING ZIP CODE	0.2
MAILING CITY	0.2
OWNER 1 FULL NAME	0.0
CLIP	0.0
FIPS CODE	0.0
APN (PARCEL NUMBER UNFORMATTED)	0.0
APN SEQUENCE NUMBER	0.0
ORIGINAL APN	0.0
ONLINE FORMATTED PARCEL ID	0.0
cl_index	0.0

In [7]:

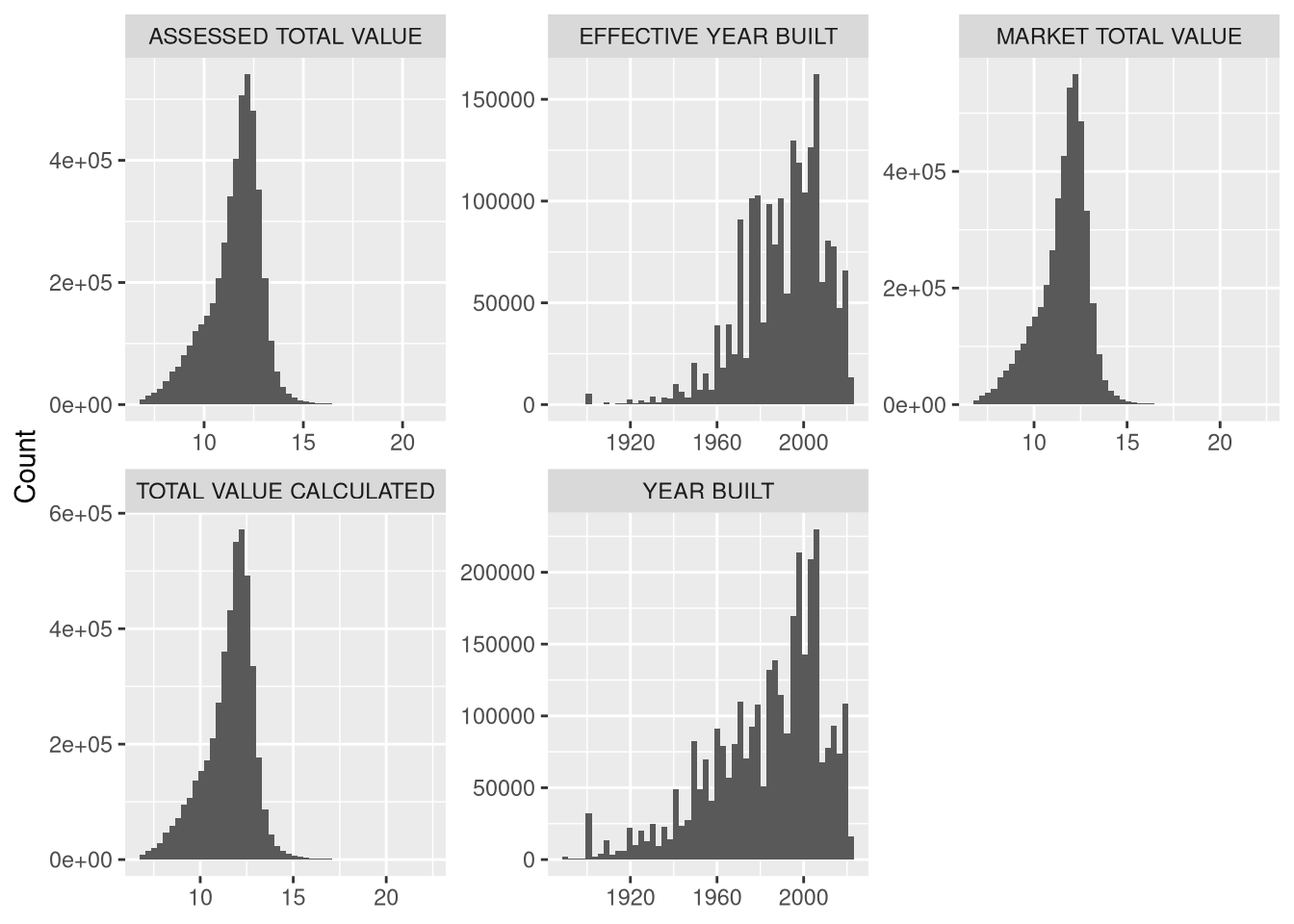

hist_vars <- c(
  "TOTAL VALUE CALCULATED",
  "ASSESSED TOTAL VALUE",
  "MARKET TOTAL VALUE",
  "YEAR BUILT",
  "EFFECTIVE YEAR BUILT"
)

value_vars <- c("TOTAL VALUE CALCULATED", "ASSESSED TOTAL VALUE", "MARKET TOTAL VALUE")
year_vars  <- c("YEAR BUILT", "EFFECTIVE YEAR BUILT")


cl_trim |>
  select(all_of(hist_vars)) |>
  mutate(across(everything(), as.numeric)) |>
  mutate(across(all_of(value_vars), ~ if_else(. < 1000, NA_real_, log1p(.)))) |>
  mutate(across(all_of(year_vars),  ~ if_else(. < 1890, NA_real_, .))) |>
  pivot_longer(everything(), names_to = "variable", values_to = "value") |>
  filter(!is.na(value)) |>
  ggplot(aes(x = value)) +
  geom_histogram(bins = 50) +
  facet_wrap(~ variable, scales = "free") +
  labs(x = NULL, y = "Count")

In [8]:

cl_trim |>
  select(all_of(hist_vars)) |>
  mutate(across(everything(), as.numeric)) |>
  summarise(across(everything(), list(
    min    = ~ min(.,    na.rm = TRUE),
    median = ~ median(., na.rm = TRUE),
    mean   = ~ mean(.,   na.rm = TRUE),
    max    = ~ max(.,    na.rm = TRUE)
  ))) |>
  pivot_longer(everything(),
               names_to  = c("variable", ".value"),
               names_sep = "_(?=[^_]+$)") |>
  arrange(variable) |>
  gt() |>
  tab_header(title = "Summary Statistics for Selected Variables") |>
  fmt_number(
    columns = c(min, median, mean, max),
    rows    = variable %in% value_vars,
    decimals = 0
  ) |>
  fmt_number(
    columns = c(min, median, mean, max),
    rows    = variable %in% year_vars,
    decimals = 1,
    use_seps = FALSE
  ) |>
  cols_label(
    variable = "Variable",
    min      = "Min",
    median   = "Median",
    mean     = "Mean",
    max      = "Max"
  )

Summary Statistics for Selected Variables
Variable	Min	Median	Mean	Max
ASSESSED TOTAL VALUE	1	131,700	250,295	1,799,390,000
EFFECTIVE YEAR BUILT	1765.0	1995.0	1990.8	2022.0
MARKET TOTAL VALUE	1	133,407	253,811	4,725,799,740
TOTAL VALUE CALCULATED	1	132,500	252,276	4,725,799,740
YEAR BUILT	1700.0	1989.0	1982.8	2022.0
